Product Summary
The MAX4466EXK+ is a micropower op amp optimized for use as microphone preamplifiers. It provides the ideal combination of an optimized gain bandwidth product vs. supply current, and low voltage operation in ultra-small packages. The MAX4466EXK+ is decompensated for minimum stable gain of +5V/V and provide a 600kHz gain bandwidth product. In addition, it features Rail-to-Rail outputs, high AVOL, plus excellent power-supply rejection and common-mode rejection ratios for operation in noisy environments.
Parametrics
MAX4466EXK+ absolute maximum ratings: (1)Supply Voltage (VCC to GND): +6V; (2)All Other Pins to GND: -0.3V to (VCC + 0.3V); (3)Output Short-Circuit Duration OUT Shorted to GND or VCC: Continuous; (4)Continuous Power Dissipation (TA = +70℃): 5-Pin SC70 (derate 2.5mW/℃ above +70℃: 200mW, 5-Pin SOT23 (derate 7.1mW/℃ above +70℃): 571mW, 8-Pin SOT23 (derate 5.3mW/℃ above +70℃): 421mW, 8-Pin SO (derate 5.88mW/℃ above +70℃): 471mW; (5)Operating Temperature Range: -40℃ to +85℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Junction Temperature: +150℃; (8)Lead Temperature (soldering, 10s): +300℃.
Features
MAX4466EXK+ features: (1)+2.4V to +5.5V Supply Voltage Operation; (2)Excellent Power-Supply Rejection Ratio: 112dB; (3)Excellent Common-Mode Rejection Ratio: 126dB; (4)High AVOL: 125dB (RL = 100kΩ); (5)Rail-to-Rail Outputs; (6)Low 24μA Quiescent Supply Current; (7)Gain Bandwidth Product: 600kHz AV ≥ 5; (8)Available in Space-Saving Packages: 5-Pin SC70.

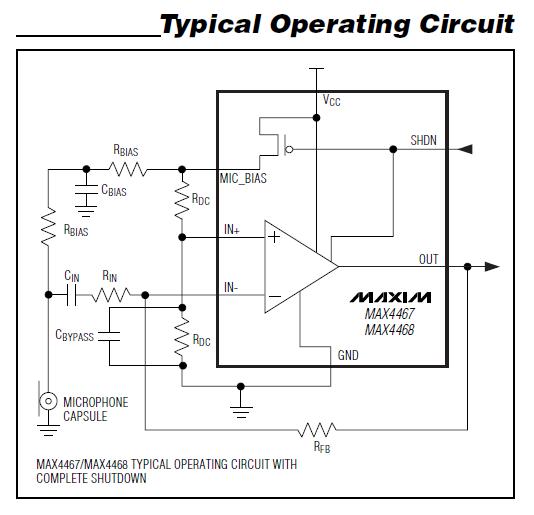

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MAX4466EXK+T |
![]() Maxim Integrated Products |
![]() Microphone Preamplifiers uPower Microphone Preamplifier |
![]() Data Sheet |
![]()
|
|
||||||||||||
