Product Summary

The TK11133CSCLG is an integrated circuit of the silicon monolithic bipolar structure, and the regulator of the low saturation output type with very little quiescent current(63μA). The TK11133CSCLG is built into. The I/O voltage difference when the current of Typ.200mA is supplied to the system is 0.2V. The voltage source can be effectively used Therefore, The TK11133CSCLG is the best for the battery use set. The on/off function is built into IC. The current at standing-by mode becomes slight (pA level). 1.5-10.0V is arranged to the output voltage in 0.1V step. The output voltage is trimmed in high accuracy. The best voltage for the set used will be able to be selected.

Parametrics

TK11133CSCLG absolute maximum ratings: (1)Supply voltage, Vcc Max:-0.4~16 V; (2)Reverse bias, VrMax:-0.4~6 V; (3)Np pin voltage, VnpMax:-0.4~5 V; (4)Control pin voltage, VcontMax:-0.4~16 V; (5)Storage temperature Range, Tstg:-55~150 ℃; (6)Operating voltage range, Vop: 1.8~14 V; (7)Operating temperature range, Top: -30~80 ℃; (8)Short circuit current, Ishort: 360 mA; (9)Power dissipation, Internal limited(150mW unit): 500mW mounted (reference).

Features

TK11133CSCLG features: (1)Very good stability CL=0.1μF is steady enough. Any type can be used (1.8V≤Vout); (2)Very low Dropout Voltage. Vd=120mV at 100mA; (3)High Precision output Voltage (±1.5% or ±50mV); (4)Good ripple rejection ratio (80dB at 1KHz); (5)Wide operating voltage range(1.8V~14V); (6)Built in Short circuit protection; (7)Peak output current is 320mA.(0.3V down point); (8)Built-in Thermal Shutdown; (9)Very low quiescent current (Iq=63uA at Io=0mA); (10)Available Very Low Noise Application; (11)Built-in on/off Control (0.1μA Max Standby current) High On; (12)Very Small Surface Mount Packages; (13)Built in reverse bias over current protection.

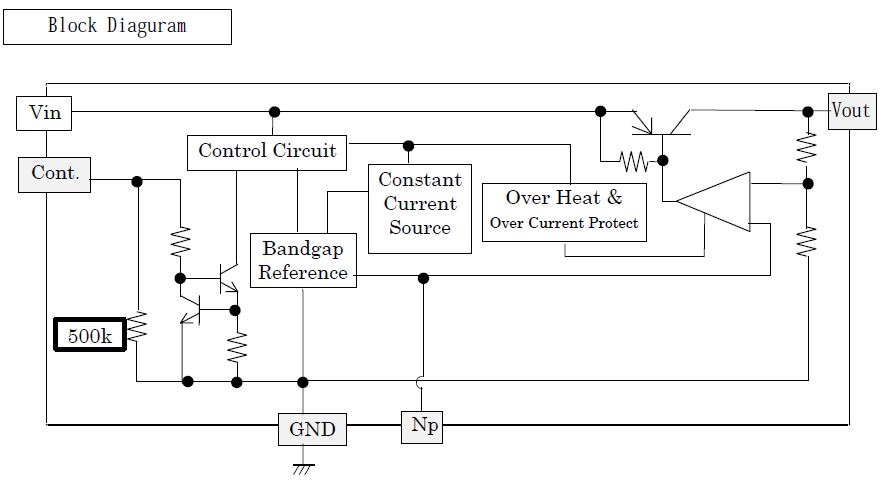

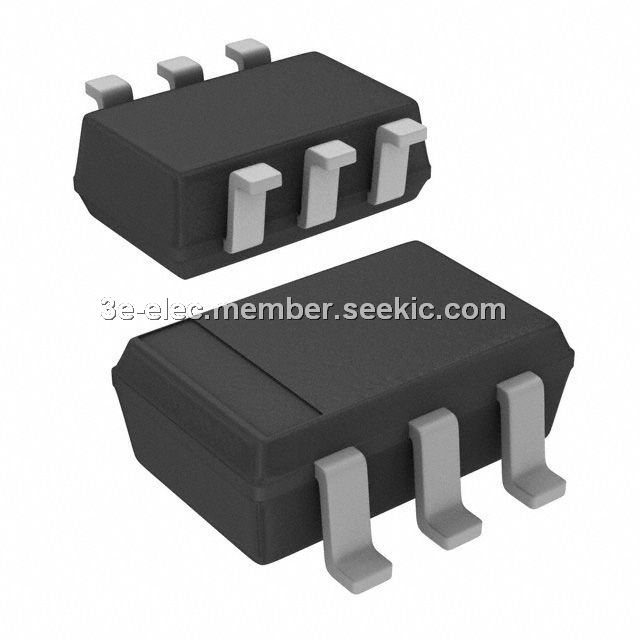

Diagrams
