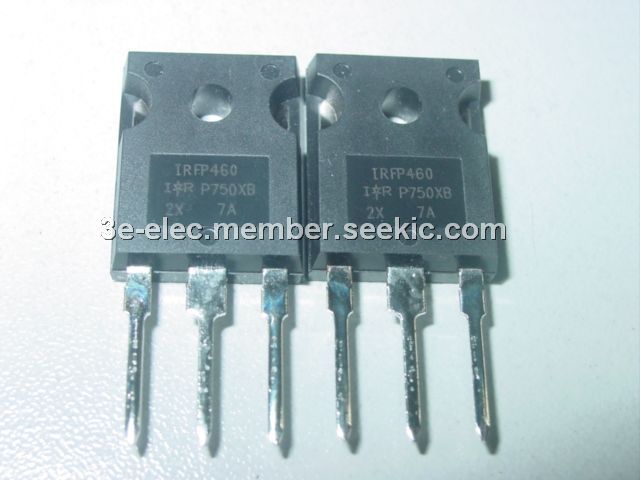

IRFP460PBF

International Rectifier, TO-247, 500V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.90~3.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.90~3.70

PartNumber:: IRFP460PBF

Brand:: International Rectifier - IR | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-20

From Other Seller

Part Number:IRFP460PBF
US $1.90 - 3.70
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRFP460PBF is an International Rectifier. The IRFP460PBF provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-247 package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because its isolated mounting hole. The IRFP460PBF also provides greater creepage distances between pins to meet the requirements of most safety specifications.

Parametrics

IRFP460PBF absolute maximum ratings: (1)Drain-Source Voltage:500V ; (2)Gate-Source Voltage:± 20V; (3)Continuous Drain Current VGS at 10 V: TC = 25℃:20A, TC = 100℃:13A; (4)Pulsed Drain Current:80A; (5)Linear Derating Factor:2.2 W/℃; (6)Single Pulse Avalanche Energyb:960 mJ ; (7)Repetitive Avalanche Current:20 A ; (8)Repetitive Avalanche Energya:28 mJ ; (9)Maximum Power Dissipation TC = 25℃:280 W ; (10)Peak Diode Recovery dV/dt:3.5 V/ns ; (11)Operating Junction and Storage Temperature Range:-55℃ to +150℃ ; (12)Soldering Recommendations (Peak Temperature) for 10 s:300℃; (13)Mounting Torque 6-32 or M3 screw:10 lbf · in, 1.1 N · m.

Features

IRFP460PBF features: (1)Dynamic dV/dt Rating; (2)Repetitive Avalanche Rated; (3)Isolated Central Mounting Hole; (4)Fast Switching; (5)Ease of Paralleling; (6)Simple Drive Requirements; (7)Lead (Pb)-free Available.
