Product Summary

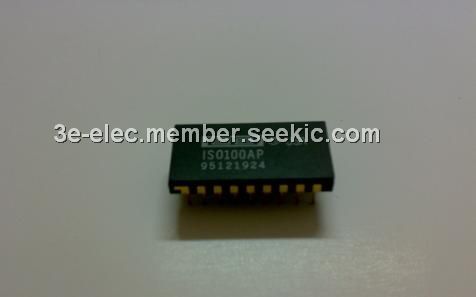

The ISO100AP is an optically-coupled isolation amplifier. High accuracy, linearity, and time-temperature stability are achieved by coupling light from an LED back to the input (negative feedback) as well as forward to the output. Optical components are carefully matched and the ISO100AP is actively laser-trimmed to assure excellent tracking and low offset errors. The circuit acts as a current-to-voltage converter with a minimum of 750V (2500V test) between input and output terminals. The ISO100AP also effectively breaks the galvanic connection between input and output commons as indicated by the ultra-low 60Hz leakage current of 0.3mA at 250V. Voltage input operation is easily achieved by using one external resistor. The applications of the ISO100AP include industrial process control transducer sensing, biomedical measurements, test equipment and data acquisition.
Parametrics
ISO100AP absolute maximum ratings: (1)Supply Voltages: ±18V; (2)Isolation Voltage, AC pk or DC: 750V; (3)Input Current: ±1mA; (4)Storage Temperature Range: –40 to +100℃; (5)Lead Temperature (soldering, 10s): +300℃; (6)Output Short-Circuit Duration: Continuous to Ground.
Features
ISO100AP features: (1)easy to use, similar to an op amp: VOUT/IIN = RF, Current Input; VOUT/VIN = RF/RIN, Voltage Input; (2)100% tested for breakdown: 750V Continuous Isolation Voltage; (3)ultra-low leakage: 0.3mA, max, at 240V/60Hz; (4)wide bandwidth: 60kHz; (5)18-PIN DIP package.

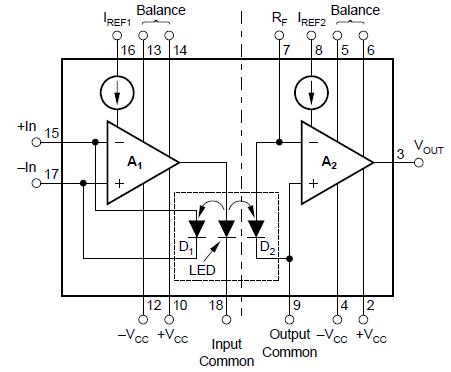

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISO100AP |
Texas Instruments |
Isolation Amplifiers Prec Lowest Cost Iso |
Data Sheet |
Negotiable |
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
|
ISO100 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
ISO100AP |
Texas Instruments |
Isolation Amplifiers Prec Lowest Cost Iso |
Data Sheet |
Negotiable |
|
||||||||
|
ISO100BP |
Texas Instruments |
Special Purpose Amplifiers Optically Coupled Iso Amp |
Data Sheet |
Negotiable |
|
||||||||
|
ISO100CP |
Texas Instruments |
Special Purpose Amplifiers Optically Coupled Iso Amp |
Data Sheet |
Negotiable |
|
||||||||
|
ISO102 |
Texas Instruments |
Isolation Amplifiers Wide BW Std Hermetic Sig Iso Buffer Amp |
Data Sheet |
Negotiable |
|
||||||||
|
ISO102B |
Texas Instruments |
Isolation Amplifiers Wide BW Std Herm Sig Iso Buffer Amp |
Data Sheet |
|
|
||||||||
