Product Summary

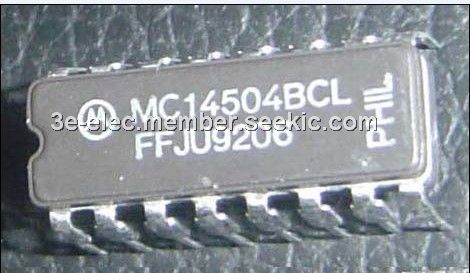

The MC14504BCL is a hex non–inverting level shifter using CMOS technology. The MC14504BCL level shifter will shift a TTL signal to CMOS logic levels for any CMOS supply voltage between 5 and 15 volts. A control input also allows interface from CMOS to CMOS at one logic level to another logic level: Either up or down level translating is accomplished by selection of power supply levels VDD and VCC. The VCC level of MC14504BCL sets the input signal levels while VDD selects the output voltage levels.
Parametrics
MC14504BCL absolute maximum ratings: (1)VCC, DC supply voltage: -0.5 to 18.0V; (2)VDD, DC supply voltage: -0.5 to +18.0V; (3)Vin, input voltage (DC or Transient): -0.5 to +18.0V; (4)VOUT, output voltage (DC or transient): -0.55 to VDD+0.5V; (5)Iin, Iout, input or output current (DC or transient), per pin: ±10mA; (6)PD, power dissipation, per package: 500mW; (7)Tstg, storage temperature: -65 to +150℃; (8)TL, lead temperature (8 second soldering): 260℃.
Features
MC14504BCL features: (1)UP Translates from a Low to a High Voltage or DOWN Translates from a High to a Low Voltage; (2)Input Threshold Can Be Shifted for TTL Compatibility; (3)No Sequencing Required on Power Supplies or Inputs for Power Up or Power Down; (4)3 to 18 Vdc Operation for VDD and VCC; (5)Diode Protected Inputs to VSS; (6)Capable of Driving Two Low-power TTL Loads or One Low-power; (7)Schottky TTL Load Over the Rated Temperature Range.

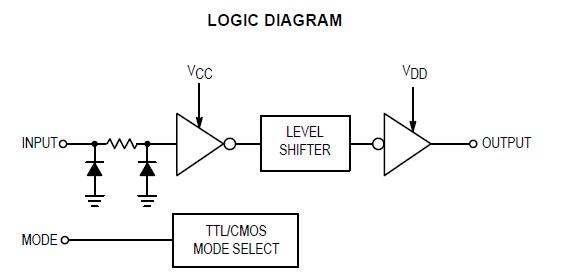

Diagrams
