Product Summary

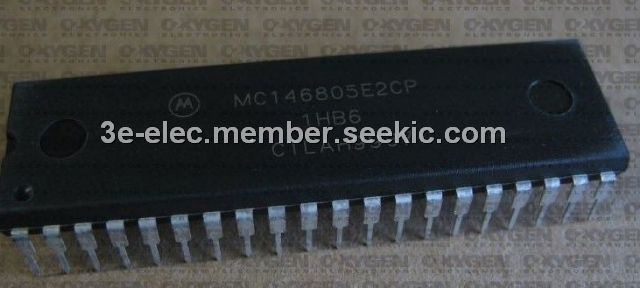

The MC146805E2CP is a Microprocessor Unit (MPU). This 8-bit fully static and expandable microprocessor contains a CPU, on-chip RAM, 1/0, and TIMER. The MC146805E2CP is a low-power, low-cost processor designed for low-end to mid-range applications in the consumer, automotive, industrial, and communications markets where very low power consumption constitutes an important factor.
Parametrics
MC146805E2CP absolute maximum ratings: (1)supply voltage, VDD: -0.3 to +8.0V; (2)all input voltages except OSC1, Vin: VSS-0.5 to VDD+0.5V; (3)current drain per pin excluding VDD and VSS, I: 10mA; (4)operating temperature range, TA: -40 to 85℃; (5)storage temperature range, Tstg: -55 to +150℃.
Features
MC146805E2CP features: (1)Typical Full Speed Operating Power of 35 mW @ 5 V; (2)Typical WAIT Mode Power of 5 mW; (3)Typical STOP Mode Power of 25 pW; (4)112 Bytes of On-Chip RAM; (5)16 Bidirectional 1/0 Lines; (6)Internal 8-Bit Timer with Software Programmable 7-Bit Prescaler; (7)External Timer Input; (8)Full External and Timer Interrupts; (9)Multiplexed Address/Data Bus; (10)Master Reset and Power-On Reset; (11)Capable of Addressing Up to 8K Bytes of External Memory; (12)Single 3- to 6-Volt Supply; (13)On-Chip Oscillator; (14)40-Pin Dual-In-Line Package; (15)Chip Cartier Also Available.

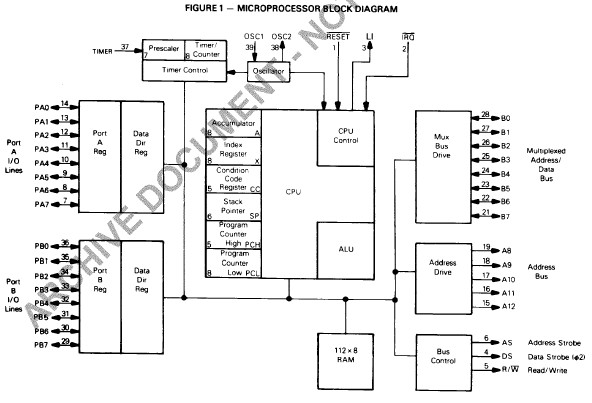

Diagrams
 |
