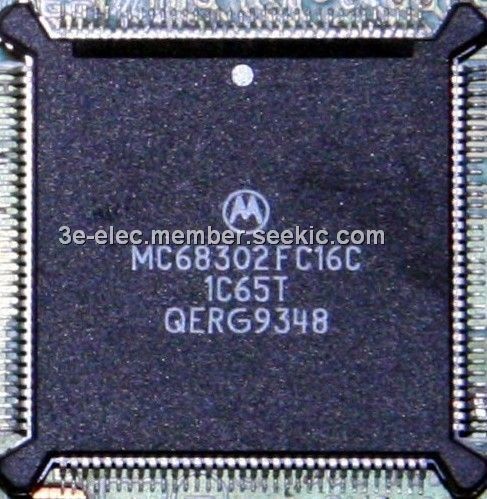

MC68302FC16C

integrated multiprotocol processor, very large-scale integration, -0.3 to + 7.0 V, QFP100

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.20~3.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.20~3.40

PartNumber:: MC68302FC16C

Brand:: Motorola, Inc - Motorola | Pack: QFP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-20

From Other Seller

Part Number:MC68302FC16C
US $1.20 - 3.40
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

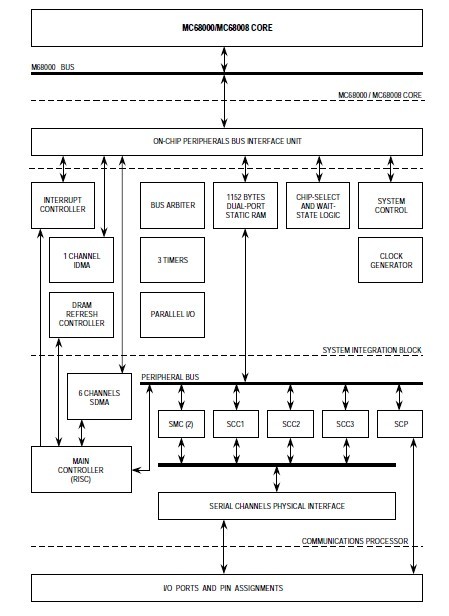

The MC68302FC16C is an integrated multiprotocol processor. It is a very large-scale integration (VLSI) device incorporating the main building blocks needed for the design of a wide variety of controllers. The device is especially suitable to applications in the communications industry. The MC68302FC16C is the first device to offer the benefits of a closely coupled, industry-standard M68000 microprocessor core and a flexible communications architecture. The MC68302FC16C is a high-density complementary metal-oxide semiconductor (HCMOS) device consisting of an M68000 microprocessor core, a system integration block (SIB), and a communications processor (CP).

Parametrics

MC68302FC16C absolute maximum ratings: (1)Supply Voltage VDD: -0.3 to + 7.0 V; (2)Input Voltage Vin: -0.3 to + 7.0 V; (3)Operating Temperature Range TA: 0 to 70 ℃; (4)Storage Temperature Range Tstg: -55 to + 150 ℃.

Features

MC68302FC16C features: (1)Independent Direct Memory Access (IDMA) Controller with Three Handshake Signals: DREQ, DACK, and DONE.; (2)Interrupt Controller with Two Modes of Operation; (3)Parallel Input/Output (I/O) Ports, Some with Interrupt Capability; (4)On-Chip 1152-Byte Dual-Port RAM; (5)Three Timers Including a Watchdog Timer; (6)Four Programmable Chip-Select Lines with Wait-State Generator Logic; (7)Programmable Address Mapping of the Dual-Port RAM and IMP Registers; (8)On-Chip Clock Generator with Output Signal.
