Product Summary

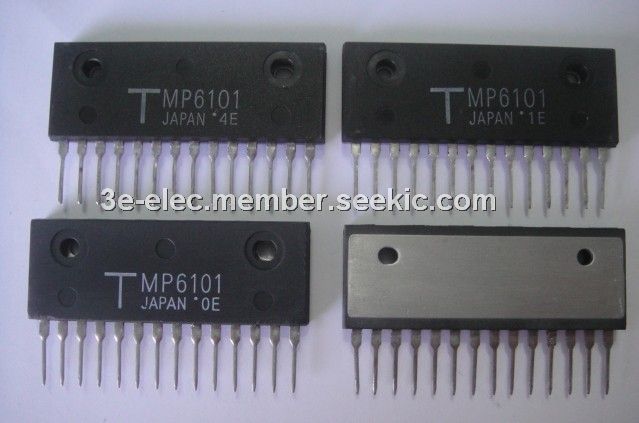

The MP6101 is a power module.

Features

MP6101 features: (1)Discrete multi-chip products; (2)Stable operation is enabled without parasitic elements such as ICs between units; (3)Low loss and durability of discrete elements is maintained; (4)Can be used in high-power applications because of the greater permissible loss and because operating temperatures are limited only by junction temperatures; (5)Voltage rating: 60 V~120 V. Current rating: 1.5 A~10 A; (6)Line-ups include three package types and eight types of circuit structure; (7)Wide range of built-in chips..

Diagrams

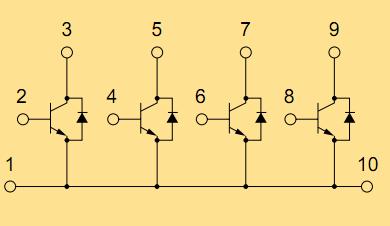

MP6101 circuit diagram
