Product Summary
The MPC8250AZUPIBC is an Integrated Circuit. The device is available in two packages: the standard TBGA package (480 pins) and an alternate PBGA package (516 pins).
Parametrics
MPC8250AZUPIBC absolute maximum ratings: (1)Core supply voltage, VDD: -0.3 to 2.5V; (2)PLL supply voltage, VCCSYN: -0.3 to 2.5V; (3)I/O supply voltage, VDDH: -0.3 to 4.0V; (4)Input voltage, VIN: GND(-0.3) to 3.6V; (5)Junction temperature, Tj: 120℃; (6)Storage temperature range, TSTG: -55 to +150℃.
Features
MPC8250AZUPIBC features: (1)Footprint-compatible with the MPC8260; (2)Dual-issue integer core; (3)System core microprocessor supporting frequencies of 15000 MHz; (4)Separate 16-Kbyte data and instruction caches; (5)Four-way set associative; (6)Physically addressed; (7)LRU replacement algorithm; (8)PowerPC architecture-compliant memory management unit (MMU); (9)Common on-chip processor (COP) test interface; (10)High-performance; (11)Separate power supply for internal logic (1.8 V) and for I/O (3.3V); (12)Separate PLLs for G2 core and for the CPM.

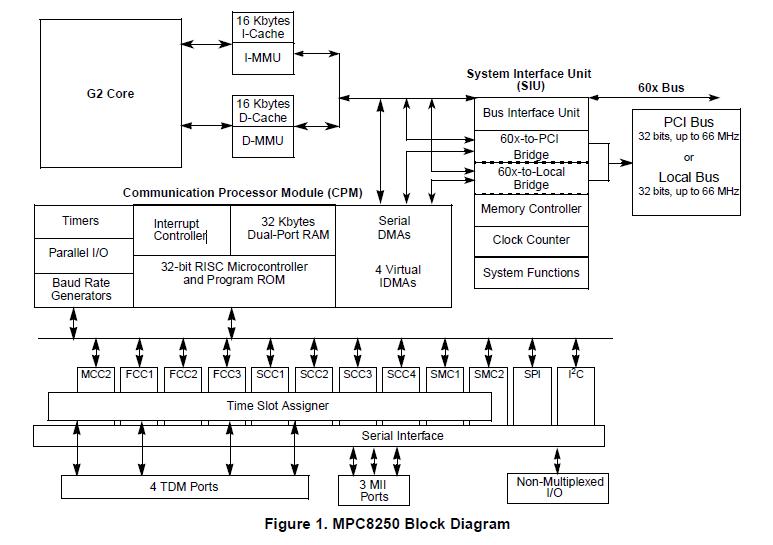

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MPC8250AZUPIBC |
Freescale Semiconductor |
Microprocessors (MPU) POWER QUICC II HIP4C |
Data Sheet |
|
|
|||||||||||||
