Product Summary

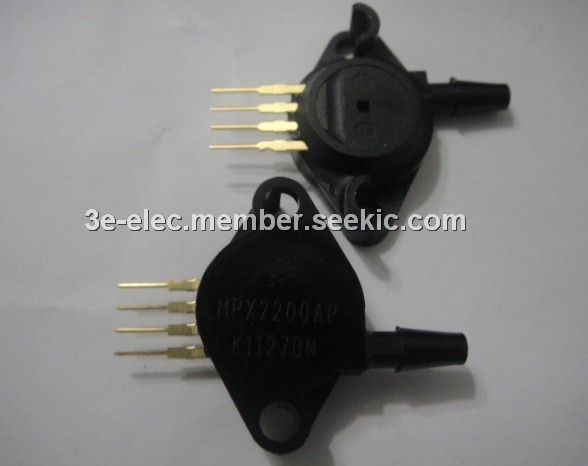

The MPX2200AP is a silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output-directly proportional to the applied pressure. The sensor is a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip. The chip is laser trimmed for precise span and offset calibration and temperature compensation. The applications of the MPX2200AP include Pump/Motor Controllers, Robotics, Level Indicators, Medical Diagnostics, Pressure Switching, Barometers, Altimeters.
Parametrics
MPX2200AP absolute maximum ratings: (1)Overpressure (P1 > P2) Pmax: 400 kPa; (2)Burst Pressure (P1 > P2) Pburst: 2000 kPa; (3)Storage Temperature, Tstg: -40 to +125℃; (4)Operating Temperature, TA: -40 to +125℃.
Features
MPX2200AP features: (1)Temperature Compensated Over 0℃ to +85℃; (2)Patented Silicon Shear Stress Strain Gauge; (3)±0.25% Linearity (MPX2200D); (4)Easy to Use Chip Carrier Package; (5)Available in Absolute, Differential and Gauge Configurations.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MPX2200AP |
Freescale Semiconductor |
Board Mount Pressure / Force Sensors PRES SEN COMP 200KPA |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
MPX200 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MPX2010 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
MPX2010D |
Freescale Semiconductor |
Board Mount Pressure / Force Sensors PRES SEN COMP 10KPA |
Data Sheet |
|
|
||||||||||||
 |
MPX2010DP |
Freescale Semiconductor |
Board Mount Pressure / Force Sensors PRES SEN COMP 10KPA |
Data Sheet |
|
|
||||||||||||
|
MPX2010GP |
Freescale Semiconductor |
Board Mount Pressure / Force Sensors PRES SEN COMP 10KPA |
Data Sheet |
|
|
||||||||||||
 |
MPX2010GS |
Freescale Semiconductor |
Board Mount Pressure / Force Sensors PRES SEN COMP 10KPA |
Data Sheet |
|
|
||||||||||||
