Product Summary

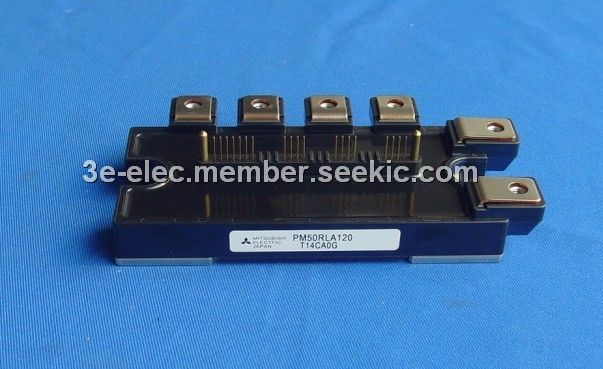

The PM50RLA120 is an Intelligent Power Module. It is an isolated base module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM50RLA120 include Inverters, UPS, Motion/Servo Control and Power Supplies.
Parametrics
PM50RLA120 absolute maximum ratings: (1)Power Device Junction Temperature, Tj: -20 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Mounting Torque, M5 Mounting Screws: 31 in-lb; (4)Mounting Torque, M5 Main Terminal Screws: 31 in-lb; (5)Module Weight (Typical): 380 Grams; (6)Supply Voltage, Surge (Applied between P - N), VCC(surge): 1000 Volts; (7)Self-protection Supply Voltage Limit (Short Circuit protection Capability) VCC(prot.): 800 Volts; (8)Isolation Voltage, AC 1 minute, 60Hz Sinusoidal, VISO: 2500 Volts.
Features
PM50RLA120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit; Over Temperature Using On-chip Temperature Sensing; Under Voltage; (4)Low Loss Using 5th Generation IGBT Chip.

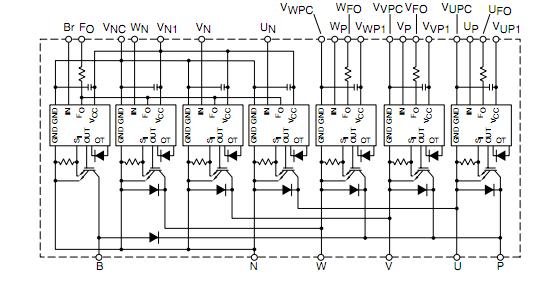

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PM50RLA120 |
MOD IPM L-SER 7PAC 1200V 50A |
Data Sheet |
|
|
||||||||||||||
