Product Summary

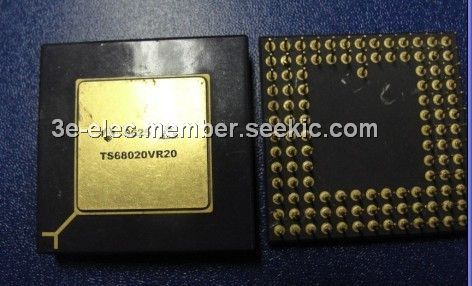

The TS68020VR20 is a full 32-bit implementation microprocessor. Using HCMOS technology, the TS68020VR20 is implemented with 32-bit registers and data paths, 32-bit addresses, a rich instruction set, and versatile addressing modes.
Parametrics
TS68020VR20 absolute maximum ratings: (1)VCC, Supply Voltage: -0.3 to +7.0 V; (2)VI, Input Voltage: -0.5 to +7.0 V; (3)Pdmax Max Power Dissipation: 2.0W; (4)Operating Temperature: -55 to +125℃; (5)Tstg, Storage Temperature: -55 to +150℃; (6)Tleads Lead Temperature: +270℃.
Features
TS68020VR20 features: (1)Object Code Compatible with Earlier TS68000 Microprocessors; (2)Addressing Mode Extensions for Enhanced Support of High Level Languages; (3)New Bit Field Data Type Accelerates Bit-oriented Application, i.e. Video Graphics; (4)Fast on-chip Instruction Cache Speed Instructions and Improves Bus Bandwidth; (5)Co-processor Interface to Companion 32-bit Peripherals: TS68881 and TS68882 Floating Point Co-processors; (6)Pipelined Architecture with High Degree of Internal Parallelism Allowing Multiple Instructions to be Executed Concurrently; (7)High Performance Asynchronous Bus in Non-multiplexed and Full 32 Bits; (8)Dynamic Bus Sizing Efficiently Supports 8-, 16-, 32-bit Memories and Peripherals; (9)Full Support of Virtual Memory and Virtual Machine; (10)Sixteen 32-bit General-purpose Data and Address Registers; (11)Two 32-bit Supervisor Stack Pointers and 5 Special Purpose Control Registers; (12)18 Addressing Modes and 7 Data Types; (13)4-Gbyte Direct Addressing Range; (14)Processor Speed: 16.67 MHz - 20 MHz - 25 MHz; (15)Power Supply: 5.0 VDC ± 10%.
