Product Summary

The CY7C68013A128AXC is an EZ-USB FX2LP USB Microcontroller. It is designed for Portable video recorder, MPEG/TV conversion, DSL modems, ATA interface, Memory card readers, Legacy conversion devices, Cameras, Scanners, Home PNA, Wireless LAN, MP3 players and Networking.

Parametrics

CY7C68013A128AXC absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Supplied: 0℃ to +70℃; (3)Supply Voltage to Ground Potential: –0.5V to +4.0V; (4)DC Input Voltage to Any Input Pin: 5.25V; (5)DC Voltage Applied to Outputs in High Z State: –0.5V to VCC + 0.5V; (6)Power Dissipation: 300 mW; (7)Static Discharge Voltage: > 2000V; (8)Max Output Current, per I/O port: 10 mA; (9)Max Output Current, all five I/O ports (128- and 100-pin packages): 50 mA.

Features

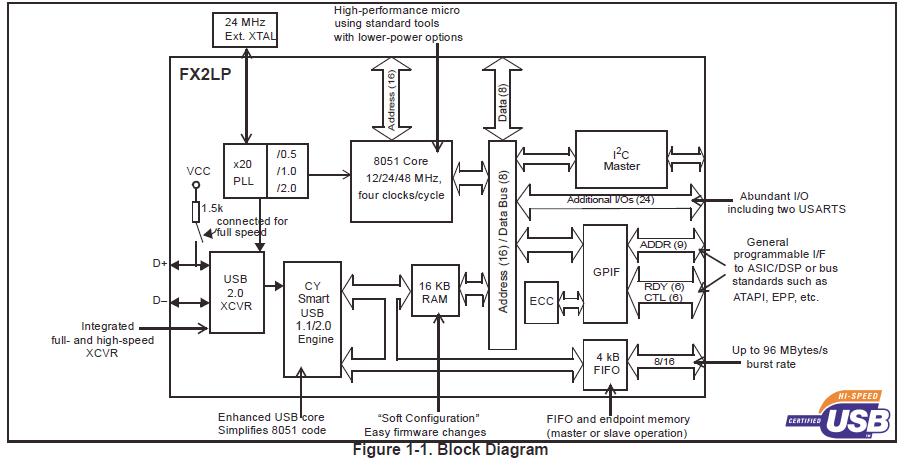

CY7C68013A128AXC features: (1)USB 2.0-USB-IF high speed certified (TID # 40440111); (2)Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor; (3)Fit, form and function compatible with the FX2: Pin-compatible, Object-code-compatible, Functionally-compatible (FX2LP is a superset); (4)Ultra Low power: ICC no more than 85 mA in any mode: Ideal for bus and battery powered applications; (5)Software: 8051 code runs from: Internal RAM, which is downloaded via USB, Internal RAM, which is loaded from EEPROM, External memory device (128 pin package); (6)16 KBytes of on-chip Code/Data RAM; (7)Four programmable BULK/INTERRUPT/ISOCHRONOUS endpoints: Buffering options: double, triple, and quad; (8)Additional programmable (BULK/INTERRUPT) 64-byte; (9)endpoint; (10)8- or 16-bit external data interface; (11)Smart Media Standard ECC generation.
