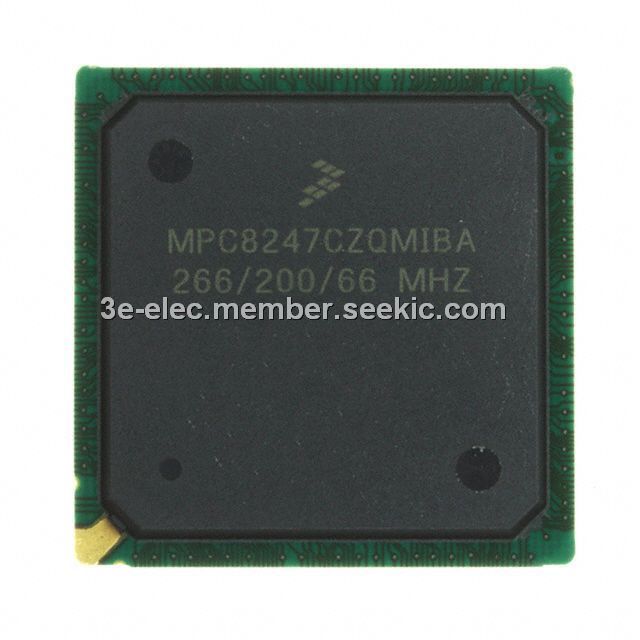

MPC8247CZQMIBA

integrated communications processor, BGA, –0.3 to 2.25 V, 32-bit data bus, 66 MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~19.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~19.00

PartNumber:: MPC8247CZQMIBA

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: BGA | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Ken's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-20

From Other Seller

Part Number:MPC8247CZQMIBA
US $8.00 - 19.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
Quantity:

piece

Product Summary

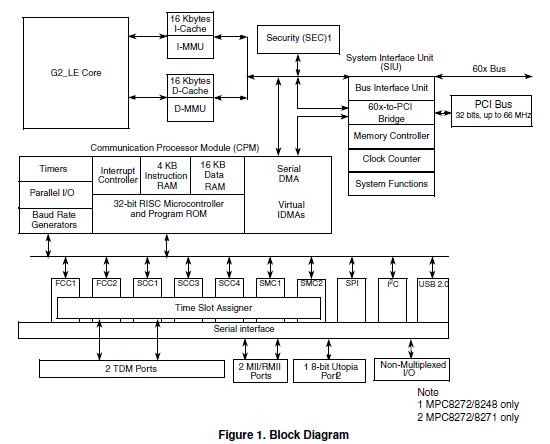

The MPC8247CZQMIBA is an integrated communications processor. The MPC8247CZQMIBA includes on a single chip a 32-bit PowerPC core that incorporates memory management units (MMUs) and instruction and data caches and that implements the PowerPC instruction set; a modified communications processor module (CPM); and an integrated security engine (SEC) for encryption.

Parametrics

MPC8247CZQMIBA absolute maximum ratings: (1)Core supply voltage,VDD: –0.3 to 2.25 V; (2)PLL supply voltage, VCCSYN: –0.3 to 2.25 V; (3)I/O supply voltage, VDDH: –0.3 to 4.0 V; (4)Input voltage, VIN: GND(–0.3) to 3.6 V; (5)Junction temperature, Tj: 120℃; (6)Storage temperature range, TSTG:–55 to +150℃.

Features

MPC8247CZQMIBA features: (1)Programmable host bridge and agent; (2)32-bit data bus, 66 MHz, 3.3 V; (3)Synchronous and asynchronous 60x and PCI clock modes; (4)All internal address space available to external PCI host; (5)DMA for memory block transfers; (6)PCI-to-60x address remapping; (7)Clock synthesizer; (8)Reset controller; (9)Real-time clock (RTC) register; (10)Periodic interrupt timer; (11)Hardware bus monitor and software watchdog timer; (12)IEEE 1149.1 JTAG test access port; (13)Eight bank memory controller; (14)Three user programmable machines, general-purpose chip-select machine, and page mode pipeline SDRAM machine; (15)Byte selects for 64-bit bus width (60x); (16)Dedicated interface logic for SDRAM.
