Product Summary
The SLRC40001T/OFE112 is a highly integrated reader IC for contactless communication at 13.56 MHz. The applicaitons of the SLRC40001T/OFE112 include Electronic payment systems, Identification systems, Access control systems, Subscriber services, Banking systems and Digital content systems.
Parametrics
SLRC40001T/OFE112 absolute maximum ratings: (1)Tamb, ambient temperature: -40 to +150℃; (2)Tstg, storage temperature: -40 to +150℃; (3)VDDD, digital supply voltage: -0.5 to +6 V; (4)VDDA, analog supply voltage: -0.5 to +6 V; (5)VDD(TVDD), TVDD supply voltage: -0.5 to +6 V; (6)|Vi|, input voltage (absolute value) on any digital pin to DVSS: -0.5 to VDDD + 0.5 V; on pin RX to AVSS: -0.5 to VDDA + 0.5 V.
Features
SLRC40001T/OFE112 features: (1)Highly integrated analog circuitry for demodulating and decoding label response; (2)Buffered output drivers enable antenna connection using the minimum of externa components; (3)Proximity operating distance up to 100 mm; (4)Supports both ICODE1 and ISO/IEC 15693 protocols; (5)Parallel microprocessor interface with internal address latch and IRQ line; (6)Flexible interrupt handling; (7)Automatic detection of parallel microprocessor interface type; (8)64-byte send and receive FIFO buffer; (9)Hard reset with low power function.

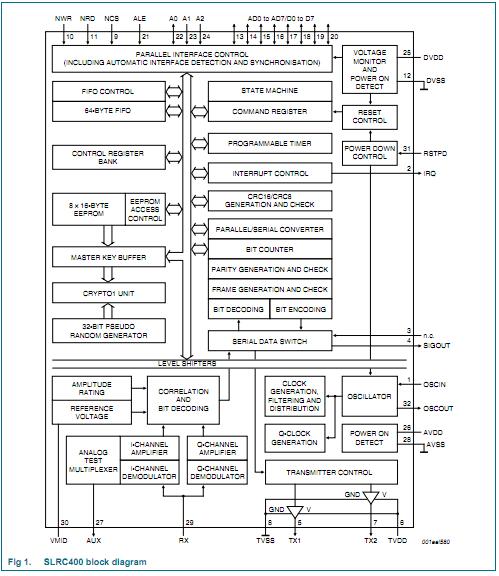

Diagrams
 |
 SLRC40001T/OFE,112 |
NXP Semiconductors |
RFID Transponder I.CODE SLRC400 READR |
Data Sheet |
|
|
||||||||||||
