Product Summary

The XCS10-3TQ144C is a field programmable Gate array. The XCS10-3TQ144C is a high-volume production FPGA solution that delivers all the key requirements for ASIC replacement up to 40,000 gates. These requirements of the XCS10-3TQ144C include high performance, on-chip RAM, core solutions and prices that, in high volume, approach and in many cases are equivalent to mask programmed ASIC devices.

Parametrics

XCS10-3TQ144C absolute maximum ratings: (1)Supply voltage relative to GND: –0.5 to +7.0 V; (2)Input voltage relative to GND(2,3): –0.5 to VCC +0.5 V; (3)Voltage applied to 3-state output(2,3): –0.5 to VCC +0.5 V; (4)Storage temperature (ambient): –65 to +150 ℃; (5)Junction temperature Plastic packages: +125 ℃.

Features

XCS10-3TQ144C features: (1)First ASIC replacement FPGA for high-volume production with on-chip RAM; (2)Density up to 1862 logic cells or 40,000 system gates; (3)Streamlined feature set based on XC4000 architecture; (4)System performance beyond 80 MHz; (5)Broad set of AllianceCORE and LogiCORE predefined solutions available; (6)Unlimited reprogrammability; (7)Low cost; (8)3.3V supply for low power with 5V tolerant I/Os; (9)Higher performance; (10)Faster carry logic; (11)More flexible high-speed clock network; (12)Latch capability in Configurable Logic Blocks; (13)Input fast capture latch; (14)Optional mux or 2-input function generator on outputs; (15)12 mA or 24 mA output drive; (16)5V and 3.3V PCI compliant; (17)Enhanced Boundary Scan; (18)Express Mode configuration; (19)Chip scale packaging.

Diagrams

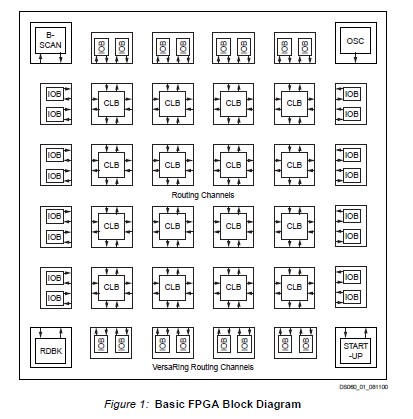

XCS10-3TQ144C block diagram
